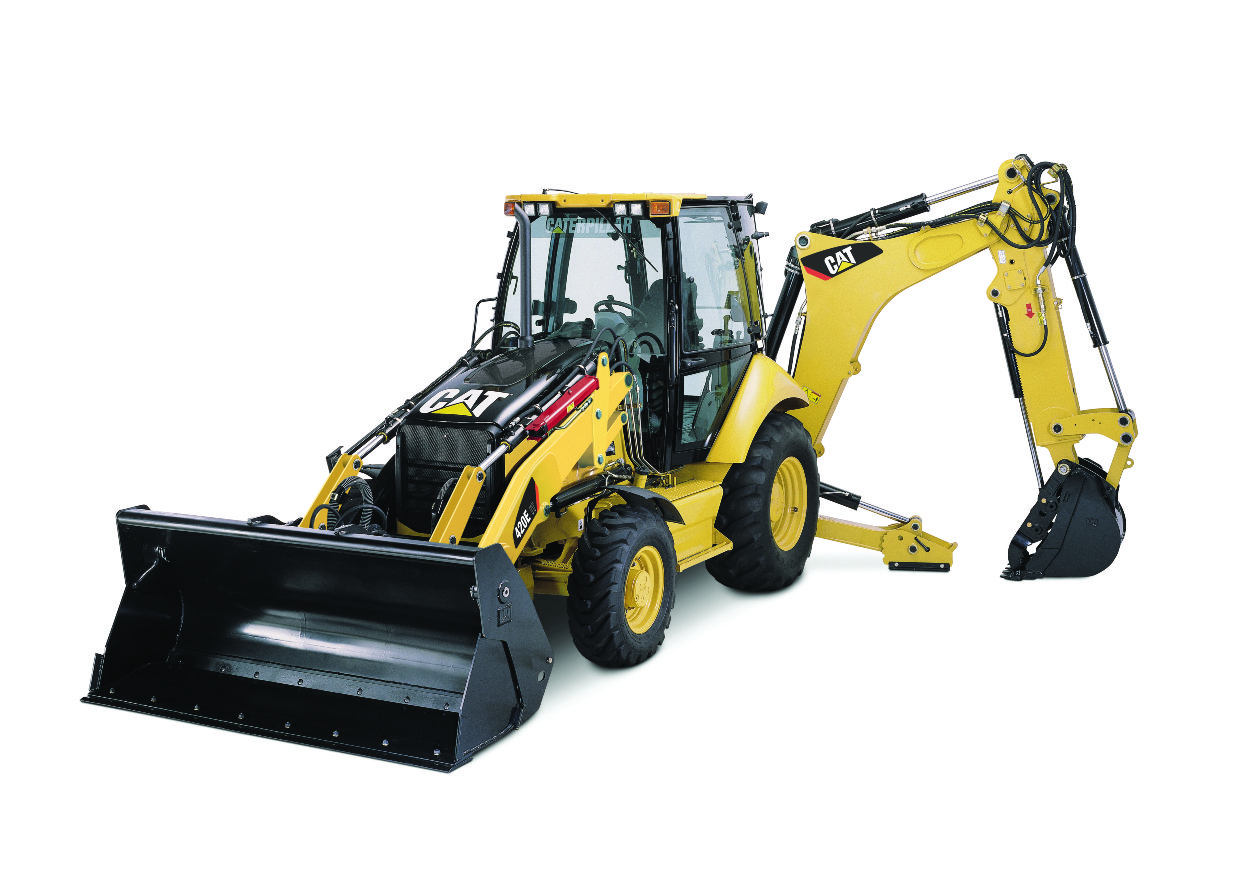

Caterpillar 430F

	Daily	Weekly	Monthly
Reg	$750	$2,550	$8,350
Corp	$700	$2,450	$8,250

We honor the lowest rate on ALL rentas

Call: 604-900-7195 to rent

Caterpillar 430F highlights

		IT Loader with Quick Coupler
		General Purpose		General Purpose		Multi Purpose
		(1.0 m³/1.3 yd³)		(1.15 m³/1.5 yd³)		(1.1 m³/1.4 yd³)
1	Overall Transport Length	7385 mm	24’3″	7428 mm	24’4″	7338 mm	24’1″
	Overall Length (loader on ground)	7391 mm	24’3″	7420 mm	24’4″	7352 mm	24’1″
2	Overall Transport Height – Standard Stick	3577 mm	11’9″	3577 mm	11’9″	3577 mm	11’9″
	Overall Transport Height – Extendible Stick	3631 mm	11’11”	3631 mm	11’11”	3631 mm	11’11”
	Overall Width	2322 mm	7’7″	2322 mm	7’7″	2322 mm	7’7″
3	Height to Top of Cab/Canopy	2819 mm	9’3″	2819 mm	9’3″	2819 mm	9’3″
4	Height to Top of Exhaust Stack	2744 mm	9’0″	2744 mm	9’0″	2744 mm	9’0″
	Height to Loader Hinge Pin (transport)	396 mm	1’4″	391 mm	1’3″	386 mm	1’3″
	Ground Clearance (minimum)	320 mm	1’1″	320 mm	1’0″	320 mm	1’0″
5	Rear Axle Centerline to Front Grill	2705 mm	8’10”	2705 mm	8’10”	2705 mm	8’10”
	Front Wheel Tread Gauge	1895 mm	6’3″	1895 mm	6’3″	1895 mm	6’3″
	Rear Wheel Tread Gauge	1714 mm	5’7″	1714 mm	5’7″	1714 mm	5’7″
6	Wheelbase 2WD/AWD	2200 mm	7’3″	2200 mm	7’3″	2200 mm	7’3″
	Capacity (SAE rated)	1.0 m3	1.3 yd3	1.15 m3	1.5 yd3	1.1 m3	1.4 yd3
	Overall Bucket Width	2406 mm	95″	2406 mm	95″	2406 mm	95″
	Lift Capacity at Maximum Height	3707 kg	8,173 lb	3682 kg	8,117 lb	3419 kg	7,537 lb
	Lift Breakout Force	51 492 N	11,575 lb	50 778 N	11,415 lb	49 413 N	11,108 lb
	Tilt Breakout Force	48 927 N	10,999 lb	46 134 N	10,371 lb	50 214 N	11,288 lb
7	Maximum Hinge Pin Height	3490 mm	11’5″	3490 mm	11’5″	3490 mm	11’5″
8	Dump Angle at Full Height	44°		44°		44°
	Dump Height at Maximum Angle	2710 mm	8’11”	2680 mm	8’10”	2745 mm	9’0″
9	Dump Reach at Maximum Angle	836 mm	2’9″	868 mm	2’10”	814 mm	2’8″
10	Maximum Bucket Rollback at Ground Level	40°		40°		39°
11	Digging Depth	105 mm	4″	105 mm	4″	95 mm	4″
	Maximum Grading Angle	111°		110°		112°
	Width of Dozer Cutting Edge	N/A		N/A		2406 mm	7’11”
12	Grill to Bucket Cutting Edge, Carry Position	1568 mm	5’2″	1597 mm	5’3″	1529 mm	5’0″
13	Maximum Operating Height	4407 mm	14’6″	4477 mm	14’8″	4480 mm	14’8″
	Jaw Opening Maximum	N/A		N/A		790 mm	2’7″
	Bucket Jaw Clamping Force	N/A		N/A		55 700 N	12,521 lbf
	Weight (does not include teeth or forks)	457 kg	1,008 lb	481 kg	1,060 lb	753 kg	1,660 lb
		Standard Stick		E-Stick Retracted		E-Stick Extended
14	Digging Depth, SAE (maximum)	4698 mm	15’5″	4795 mm	15’9″	5935 mm	19’6″
15	Digging Depth, 610 mm (2 ft) Flat Bottom	4660 mm	15’4″	4766 mm	15’8″	5906 mm	19’5″
	Reach from Rear Axle Centerline at Ground Line	7133 mm	23’6″	7227 mm	23’10”	8316 mm	27’5″
16	Reach from Swing Pivot at Ground Line	6043 mm	19’10”	6137 mm	20’2″	7226 mm	23’9″
	Maximum Operating Height	6007 mm	19’9″	6075 mm	20’0″	6958 mm	22’11”
	Loading Height	3961 mm	13’0″	3921 mm	12’10”	4533 mm	14’10”
17	Loading Reach	1855 mm	6’1″	2022 mm	6’8″	3003 mm	9’10”
	Swing Arc	180°		180°		180°
	Bucket Rotation	205°		205°		205°
18	Stabilizer Spread, Operating Position (center)	3310 mm	10’10”	3310 mm	10’10”	3310 mm	10’10”
	Stabilizer Spread, Operating Position (outside)	3770 mm	12’4″	3770 mm	12’4″	3770 mm	12’4″
	Stabilizer Spread, Transport Position	2322 mm	7’7″	2322 mm	7’7″	2322 mm	7’7″
	Bucket Dig Force	71 864 N	16,156 lb	70 870 N	15,932 lb	70 870 N	15,932 lb
	Stick Dig Force	44 778 N	10,067 lb	43 841 N	9,856 lb	32 414 N	7,287 lb
