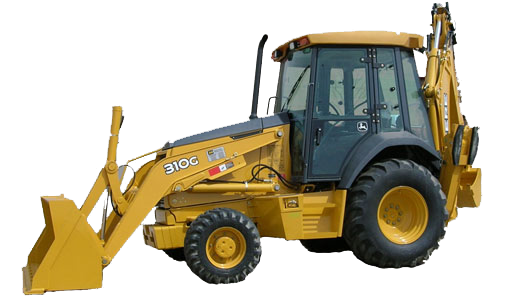

Home » Backhoes » John Deere 310G

We honor the lowest rate on ALL rentas

Backhoe Dimensions		310G
A	Loading height, truck loading position	10 ft. 11 in. (3.33 m)
B	Reach from center of swing pivot	17 ft. 10 in. (5.44 m)
C	Reach from center of rear axle	21 ft. 4 in. (6.50 m)
D	Maximum digging depth	14 ft. 3 in. (4.34 m)
E	Ground clearance, minimum	12 in. (305 mm)
F	Transport height	11 ft. 3 in. (3.43 m)
G	Overall length, transport	23 ft. 3 in. (7.09 m)
H	Stabilizer width – transport with ROPS	7 ft. 2 in. (2.18 m)
I	Stabilizer spread – operating	10 ft. 2 in. (3.10 m)
J	Stabilizer overall width – operating	11 ft. 7 in. (3.53 m)
K	Width over tires	82.9 in. (2.11 m)
L	Height to tops of ROPS	9 ft. (2.74 m)
M	Length from axle to axle	82.7 in. (2100 mm)
Loader Dimensions
a	Height to bucket hinge pin, maximum	11 ft. 1 in. (3.38 m)
b	Dump clearance, bucket at 45 degrees	8 ft. 10 in. (2.69 m)
c	Reach at full height, bucket at 45 degrees	30.9 in. (785 mm)
d	Digging depth below ground, bucket level	6.3 in. (160 mm)
e	Length from front axle centerline to bucket cutting edge	80 in. (2030 mm)
	Raising time to full height	4.9 sec.
	Bucket dump time at maximum height	1.3 sec.
	Bucket lowering time (power down)	2.5 sec.

Lift capacities
