CAT 321D LCR
| Daily | Weekly | Monthly | |
| Reg | $725 | $2,900 | $9,300 |
| Corp | $600 | $2,500 | $8,500 |
We honor the lowest rate on ALL rentas
CAT 321D LCR highlights

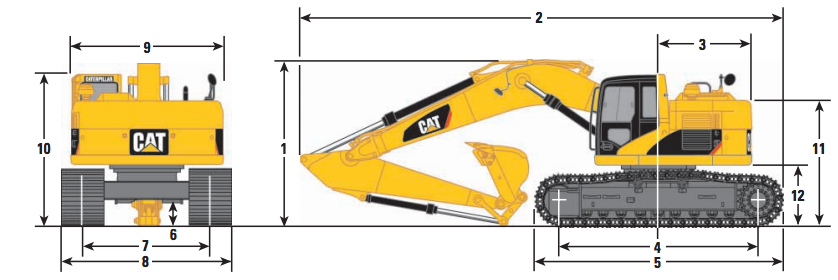

| Boom | Reach — 5.7 m (18’7″) Stick | |
| Stick | R2.9B1 (9’7″) | |
| 1 | Shipping Height* | 3030 mm (9’11”) |
| 2 | Shipping Length | 8830 mm (29’0″) |
| 3 | Tail Swing Radius | 1680 mm (5’6″) |
| 4 | Length to Center of Rollers | 3650 mm (12’0″) |
| 5 | Track Length | 4455 mm (14’7″) |
| 6 | Ground Clearance** | 450 mm (1’6″) |
| 7 | Track Gauge | 2380 mm (7’10”) |
| 8 | Track Width*** | 2980 mm (9’9″) |
| 9 | Body Width | 2980 mm (9’9″) |
| 10 | Cab Height* | 2980 mm (9’9″) |
| 11 | Engine Hood Height* | 2315 mm (7’7″) |
| 12 | Counterweight Clearance** | 1020 mm (3’4″) |
* Includes 30 mm (1 in) shoe lug height.
** Without 30 mm (1 in) shoe lug height.
*** Track width shown is for 600 mm (24″) track shoes for long undercarriage.
| Boom | Reach 5.7 m (18’7″) | |
| Stick | R2.9B1 (9’7″) | |
| 1 | Maximum Digging Depth | 6630 mm (21’9″) |
| 2 | Maximum Reach on Ground | 9710 mm (31’10”) |
| 3 | Maximum Loading Height | 7970 mm (26’2″) |
| 4 | Minimum Loading Height | 3040 mm (10’0″) |
| 5 | Maximum Vertical Wall Digging Depth | 5950 mm (19’6″) |
| 6 | Minimum Front Swing Radius | 2340 mm (7’8″) |
| 7 | Maximum Reach | 9900 mm (32’6″) |
| 8 | Maximum Cutting Height | 10 930 mm (35’10”) |
| 9 | Maximum Digging Depth 2440 mm (8′) Level Bottom | 6450 mm (21’2″) |
|
Bucket Digging Force (ISO) (SAE) |
149 kN (35,000 lb) 131 kN (29,450 lb) |
|
|
Stick Digging Force (ISO) (SAE) |
109 kN (24,504 lb) 105 kN (23,605 lb) |
|
CAT 321D LCR key benefits
Demolition ready excavator rentals:
Power
Compact:
Visibility:
Low operation noise:
- Larger commercial or residential structure demolition
- Dig up sewage pipes or electrical conduit
- Break up large areas of concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Remove larger trees or stumps
- Load sand and gravel
