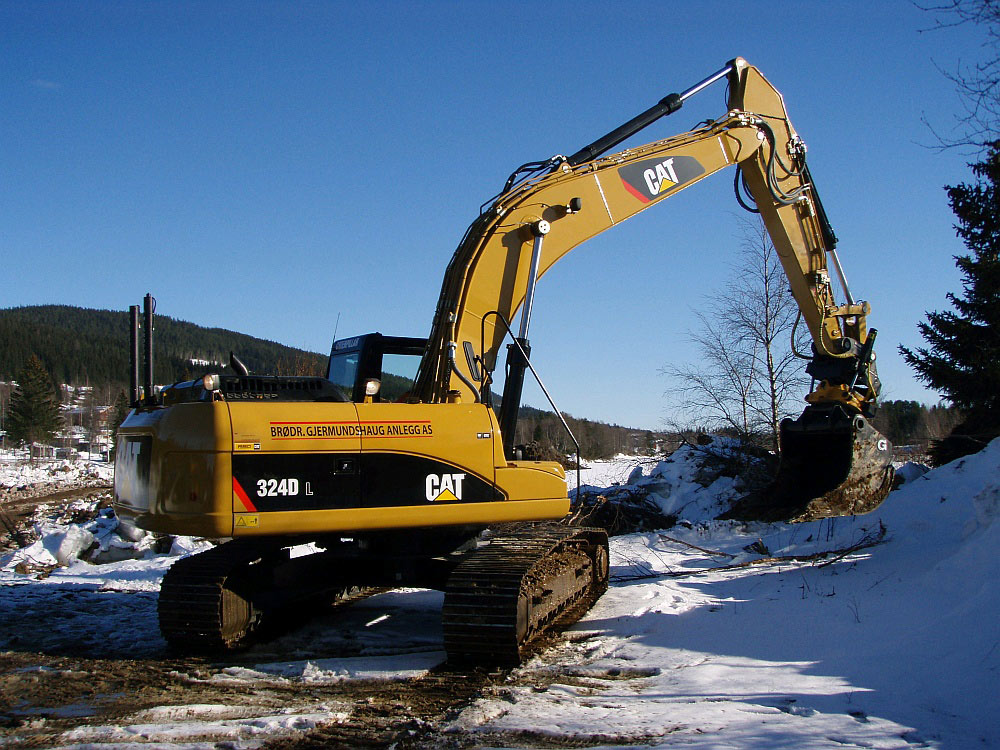

CAT 324DL highlights



Boom Options

Reach Boom 5.9 m

   Mass Boom 5.3 m
Stick Options R3.6B1 R2.95CB1 R2.5CB1   M2.5DB M2.0DB
1 Shipping height** 3430 mm 3170 mm 3300 mm   3450 mm 3320 mm
2 Shipping length 10 050 mm 10 060 mm 10 100 mm   9480 mm 9610 mm
3 Tail swing radius 2940 mm 2940 mm 2940 mm   2940 mm 2940 mm
Undercarriage  Fixed Gauge   Long Fixed Gauge
4 Length to center of rollers 3450 mm   3830 mm
5 Track length 4250 mm   4630 mm
6 Ground clearance*** 470 mm   470 mm
7 Track gauge 2390 mm   2590 mm
8 Track width* 2990 mm   3390 mm
9 Cab height** 2980 mm   2980 mm
10 Counterweight clearance*** 1060 mm   1060 mm

* Track width shown is for 600 mm track shoes for Fixed Gauge and 800 mm for Long Fixed Gauge.

** Includes 30 mm shoe lug height.

*** Without 30 mm shoe lug height.



Boom Options Reach Boom   Mass Boom
Stick Options R3.6B1 R2.95CB1 R2.5CB1   M2.5DB M2.0DB
1 Maximum digging depth 7300 mm 6740 mm 6290 mm   5910 mm 5410 mm
2 Maximum reach at ground level 10 550 mm 10 030 mm 9620 mm   9110 mm 8650 mm
3 Maximum cutting height 9880 mm 9660 mm 9460 mm   9060 mm 8830 mm
4 Maximum loading height 7070 mm 6700 mm 6500 mm   5970 mm 5750 mm
5 Minimum loading height 1910 mm 2470 mm 2930 mm   2360 mm 2860 mm
6 Maximum depth cut for 7140 mm 6560 mm 6080 mm   5720 mm 5190 mm
  2240 mm level bottom
7 Maximum vertical wall digging depth 6540 mm 5830 mm 5390 mm   4590 mm 4120 mm
  Bucket digging force     (SAE) 131 kN 154 kN 154 kN   198 kN 198 kN
                                         (ISO) 149 kN 174 kN 174 kN   222 kN 222 kN
  Stick digging force        (SAE) 105 kN 118 kN 138 kN   135 kN 154 kN
                                         (ISO) 108 kN 122 kN 143 kN   140 kN 160 kN

324DL key benefits

Demolition ready excavator rentals:

When you rent a CAT 324DL from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a CAT 324DL from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a CAT 324DL from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a CAT 324DL from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a CAT 324DL from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel
