CAT M318D highlights

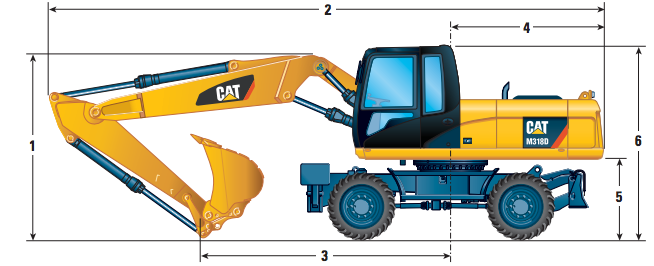

  VA Boom One-Piece Boom
Stick Length mm 2200 2500 2800 *3300 2200 2500 2800 *3300
1 Shipping Height mm 3170 3170 3300 3330 3190 3210 3330 3290
2 Shipping Length mm 8870 8550 8820 8850 8870 8960 8950 9000
3 Support Point mm 3920 3650 3510 3270 3810 3490 3310 3080
4 Tail Swing Radius mm 2565 2565
5 Counterweight Clearance mm 1275 1275
6 Cab Height mm 3170 3170
   With 1200 mm Fixed Cab Riser mm 4370 4370
Overall Machine Width mm 2550 2550
   Wide Gauge Axle mm 2750 2750

* Industrial stick

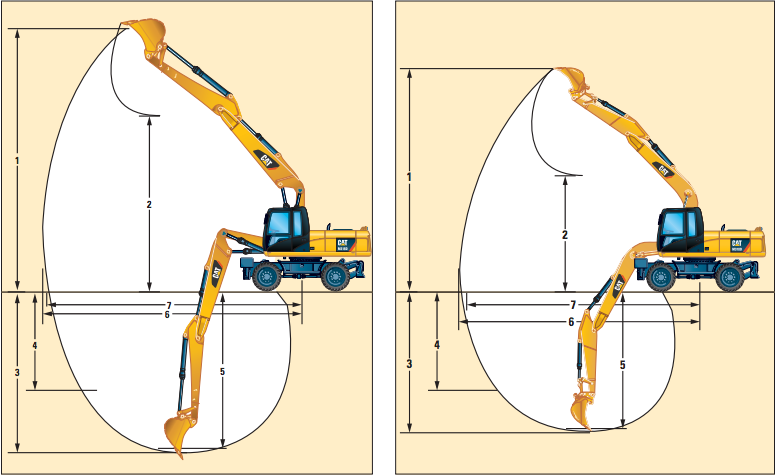

   VA Boom One-Piece Boom
Stick Length mm 2200 2500 2800 *3300 2200 2500 2800 *3300
1 Digging Height mm 9710 10 000 10 210 8620 8760 9010 9170 7560
2 Dump Height mm 6700 6970 7190 3550 5900 6110 6270 3140
3 Digging Depth mm 5750 6060 6360 5320 5700 6000 6300 5250
4 Vertical Wall Digging Depth mm 3220 3680 3960 – 2880 3340 3620 –
5 Depth 2.5 m Straight Clean-Up mm 5538 5865 6179 – 5488 5805 6119 –
6 Reach mm 9160 9470 9760 8490 9180 9490 9770 8470
7 Reach at Ground Level mm 8970 9300 9590 8290 9000 9320 9600 8270
Bucket Forces (ISO 6015) kN 126 126 126 – 126 126 126 –
Stick Forces (ISO 6015) kN 102 91 85 – 102 91 85 –

* Industrial stick has no bucket linkage. All dimensions refer to sticknose.

Values 1-7 are calculated with bucket and quick coupler with a tip radius of 1599 mm.

Breakout force values are calculated with heavy lift on (no quick coupler) and a tip radius of 1405 mm.

CAT M318D key benefits

Demolition ready excavator rentals:

When you rent a CAT M318D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a CAT M318D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a CAT M318D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a CAT M318D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a CAT M318D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel
