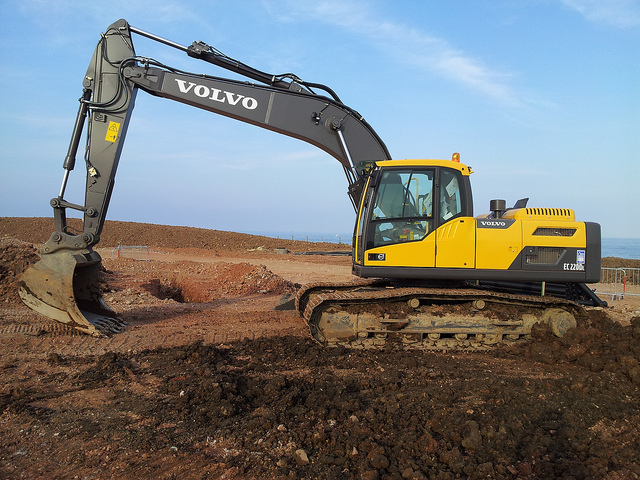

Volvo EC220 D highlights

Description Unit EC220D
Boom m 5.7
Arm m 2.0 2.5 2.9 3.5
A Overall width of upper structure mm 2 700 2 700 2 700 2 700
B Overall width mm 2 800 2 800 2 800 2 800
C Overall height of cab mm 2 930 2 930 2 930 2 930
D Tail slew radius mm 2 850 2 850 2 850 2 850
E Overall height of engine hood mm 2 315 2 315 2 315 2 315
F Counterweight clearance * mm 1 025 1 025 1 025 1 025
G Tumbler length mm 3 370 3 370 3 370 3 370
H Track length mm 4 160 4 160 4 160 4 160
I Track gauge mm 2 200 2 200 2 200 2 200
J Shoe width mm 600 600 600 600
K Minimum ground clearance * mm 460 460 460 460
L Overall length mm 9 795 9 745 9 690 9 720
M Overall height of boom mm 3 100 3 080 2 940 3 260

* Without shoe grouser

Description Unit EC220D
Boom m 5.7
Arm m 2.0 2.5 2.9 3.5
A Max. digging reach mm 9 090 9 550 9 930 10 390
B Max. digging reach on ground mm 8 910 9 380 9 770 10 240
C Max. digging depth mm 5 830 6 330 6 730 7 330
D Max. digging depth (I = 2440 mm level) mm 5 560 6 100 6 540 7 130
E Max. vertical wall digging depth mm 4 880 5 620 6 090 6 470
F Max. cutting height mm 8 940 9 220 9 460 9 460
G Max. dumping height mm 6 190 6 430 6 650 6 700
H Min. front swing radius mm 3 790 3 670 3 640 3 660
Digging forces with direct fit bucket
Bucket radius     mm 1 470 1 470 1 470 1 470
Breakout force –
 Normal SAE J1179 kN 151 130 130 130
Power boost SAE J1179 kN 160 137 137 137
bucket
 Normal ISO 6015 kN 168 145 145 145
Power boost ISO 6015 kN 178 153 153 153
Tearout force –
 Normal SAE J1179 kN 146 119 102 93
Power boost SAE J1179 kN 155 125 108 98
dipper arm
 Normal ISO 6015 kN 150 122 105 95
Power boost ISO 6015 kN 159 129 111 100
Rotation angle, bucket ° 175 175 175 175

EC220 D key benefits

Demolition ready excavator rentals:

When you rent a Volvo EC220 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a Volvo EC220 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a Volvo EC220 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a Volvo EC220 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a Volvo EC220 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel
  • Travel quicker and easier with mobile technology
