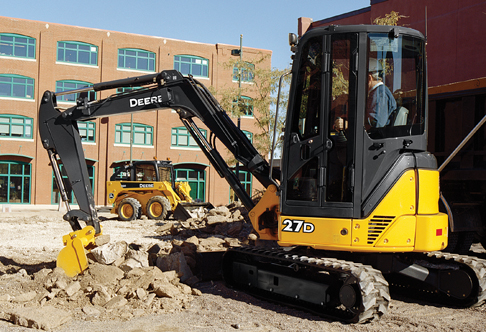

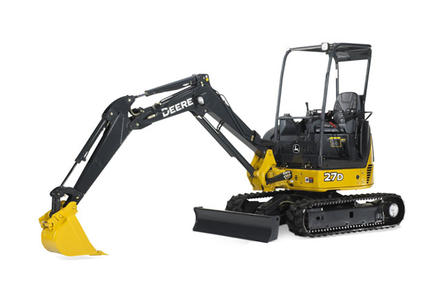

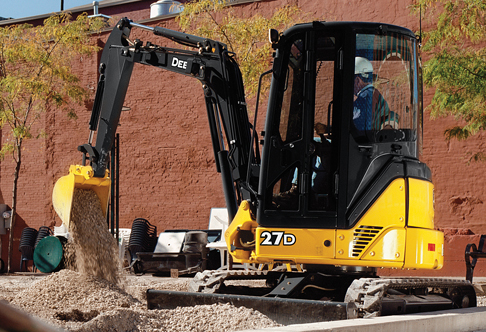

John Deere 27D highlights

Operating Dimensions 27D
  1.17-m (3 ft. 10 in.) Standard Arm, Canopy, and Standard Counterweight 1.17-m (3 ft. 10 in.) Standard Arm, Cab, and Standard Counterweight 1.47-m (4 ft. 10 in.) Long Arm, Canopy, and Extra Counterweight 1.47-m (4 ft. 10 in.) Long Arm, Cab, and Extra Counterweight
A Maximum Digging Height  4.45 m (14 ft. 7 in.) 4.28 m (14 ft. 1 in.) 4.55 m (14 ft. 11 in.) 4.35 m (14 ft. 3 in.)
B Maximum Dumping Height  3.19 m (10 ft. 6 in.) 3.03 m (9 ft. 11 in.) 3.30 m (10 ft. 10 in.) 3.12 m (10 ft. 3 in.)
C Maximum Digging Depth  2.59 m (8 ft. 6 in.) 2.59 m (8 ft. 6 in.) 2.89 m (9 ft. 6 in.) 2.89 m (9 ft. 6 in.)
D Maximum Digging Reach  4.67 m (15 ft. 4 in.) 4.67 m (15 ft. 4 in.) 4.92 m (16 ft. 2 in.) 4.92 m (16 ft. 2 in.)
E Minimum Front Swing Radius  1.96 m (6 ft. 5 in.) 2.05 m (6 ft. 9 in.) 2.04 m (6 ft. 8 in.) 2.10 m (6 ft. 11 in.)
F Transport Length  4.20 m (13 ft. 9 in.) 4.28 m (14 ft. 1 in.) 4.20 m (13 ft. 9 in.) 4.28 m (14 ft. 1 in.)
Breakout Force
  Bucket 22.2 kN (4,994 lb.) 22.2 kN (4,994 lb.) 22.2 kN (4,994 lb.) 22.2 kN (4,994 lb.)
  Arm 15.2 kN (3,410 lb.) 15.2 kN (3,410 lb.) 13.2 kN (2,970 lb.) 13.2 kN (2,970 lb.)
Machine Dimensions
Blade Width 1.55 m (5 ft. 1 in.)
Blade Height 360 mm (14.2 in.)
G Upperstructure Width 1.55 m (5 ft. 1 in.)
H Overall Height
  Canopy 2.46 m (8 ft. 1 in.)
  Cab 2.50 m (8 ft. 2 in.)
I Track Width 305 mm (12 in.)
J Undercarriage Width 1.55 m (5 ft. 1 in.)
K Ground Clearance 320 mm (12.6 in.)
L Tail Swing Radius
  Standard Arm 775 mm (31 in.)
  Long Arm with Extra Counterweight 870 mm (34 in.)
M Engine Cover Height 1.42 m (4 ft. 8 in.)
N Maximum Blade Lift Above Ground 360 mm (14 in.)
O Maximum Blade Drop Below Ground 315 mm (12 in.)
P Sprocket Center To Idler Center 1.49 m (4 ft. 11 in.)
Q Track Length 1.95 m (6 ft. 5 in.)
R Counterweight Clearance 550 mm (22 in.)

27D key benefits

Demolition ready excavator rentals:

When you rent a John Deere 27D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a John Deere 27D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a John Deere 27D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a John Deere 27D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a John Deere 27D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Tear down a fence or a very small house
  • Dig up sewage pipes or electrical conduit
  • Break up concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Fence pole installation
  • Plant trees
  • Remove stumps
  • Load sand and gravel
  • Brush Cutting
