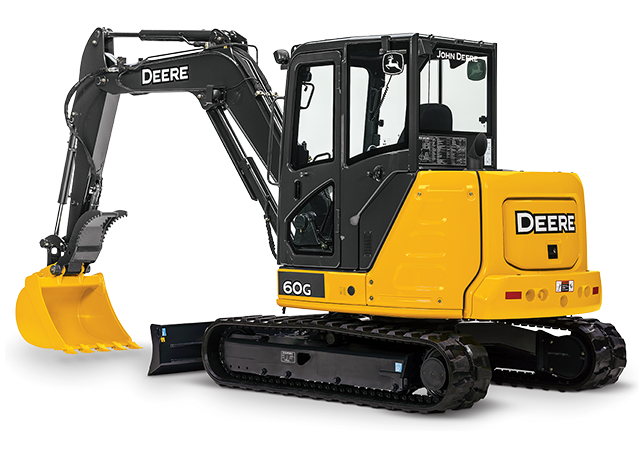

John Deere 60G highlights

Operating Dimensions 60G
  1500-mm (4 ft. 11 in.) Standard Arm 1850-mm (6 ft. 1 in.) Long Arm
A Maximum Cutting Height 5.96 m (19 ft. 7 in.) 6.19 m (20 ft. 4 in.)
B Maximum Dumping Height 4.17 m (13 ft. 8 in.) 4.41 m (14 ft. 6 in.)
C Maximum Digging Depth 3.77 m (12 ft. 4 in.) 4.12 m (13 ft. 6 in.)
D Maximum Digging Reach 6.23 m (20 ft. 5 in.) 6.56 m (21 ft. 6 in.)
E Minimum Front Swing Radius 2.45 m (8 ft. 0 in.) 2.54 m (8 ft. 4 in.)
F Transport Length 5.76 m (18 ft. 11 in.) 5.90 m (19 ft. 4 in.)
Breakout Force (ISO 6015)
  Bucket 41.1 kN (9,237 lb.) 41.0 kN (9,217 lb.)
  Arm 31.1 kN (6,989 lb.) 27.0 kN (6,063 lb.)
Machine Dimensions
Blade
  Width 2.00 m (6 ft. 7 in.)
  Height 420 mm (16 in.)
G Upperstructure Width 2.00 m (6 ft. 7 in.)
H Overall Height 2.54 m (8 ft. 4 in.)
I Track Width 400 mm (16 in.)
J Undercarriage Width 2.00 m (6 ft. 7 in.)
K Ground Clearance 340 mm (13 in.)
L Tail Swing Radius
  With Standard Arm 1.30 m (4 ft. 3 in.)
  With Long Arm and Extra Counterweight 1.41 m (4 ft. 8 in.)
M Engine Cover Height 1.60 m (5 ft. 3 in.)
N Maximum Blade Lift Above Ground 460 mm (18 in.)
O Maximum Blade Drop Below Ground 370 mm (15 in.)
P Sprocket Center To Idler Center 1.99 m (6 ft. 6 in.)
Q Track Length 2.50 m (8 ft. 2 in.)
R Counterweight Clearance 620 mm (24 in.)

60G key benefits

Demolition ready excavator rentals:

When you rent a John Deere 60G from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a John Deere 60G from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a John Deere 60G from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a John Deere 60G from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a John Deere 60G from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Replace sewage pipes or trench for electrical conduit
  • Break up concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Fence pole installation
  • Plant trees
  • Remove stumps
  • Load sand and gravel
  • Brush Cutting
  • Tear down a small structure
